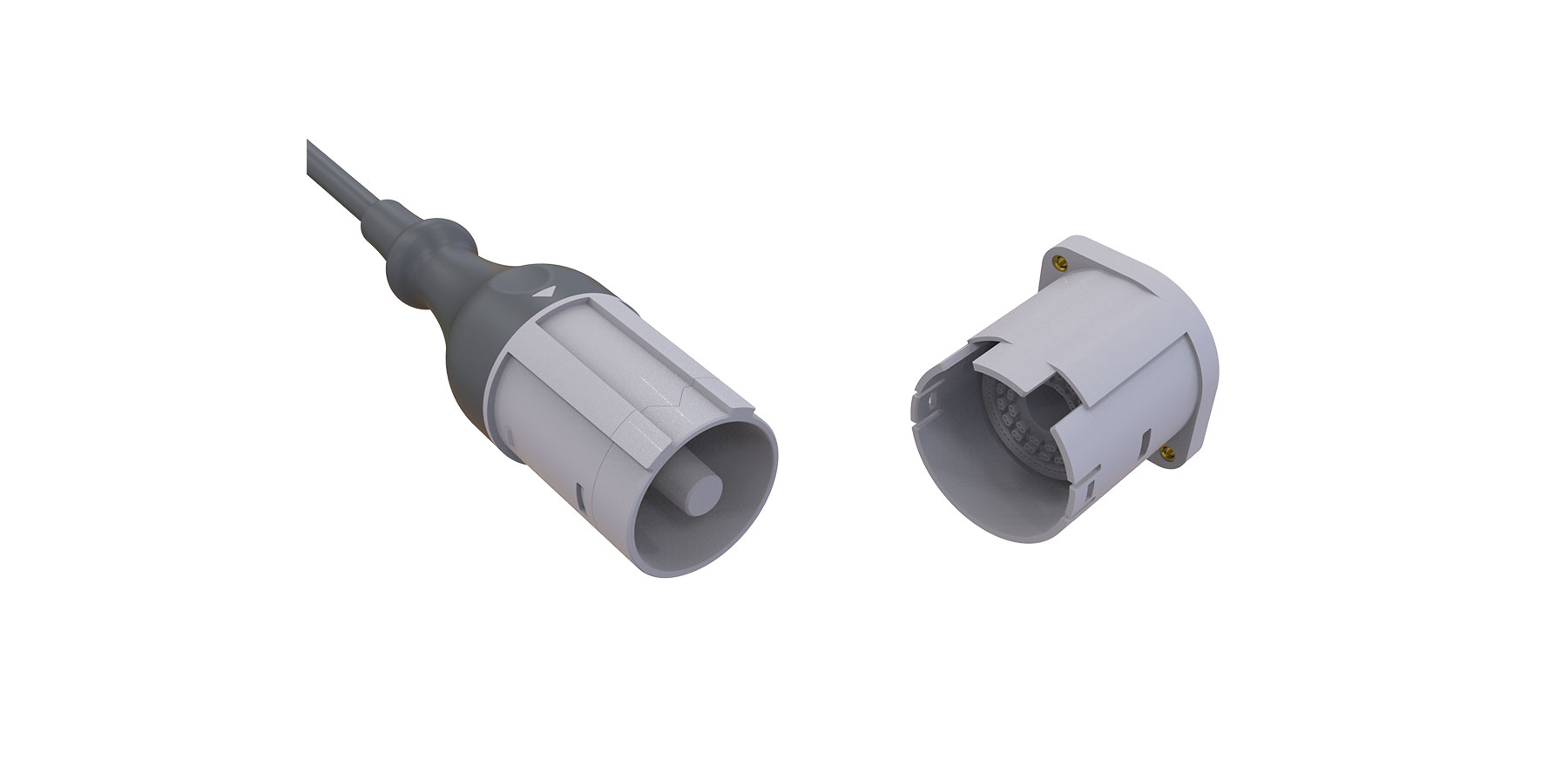

TheraVolt™ Medical Connectors
In response to the growing demand for enhanced functionality, customization and improved electrical performance in medical devices, TheraVolt Medical Connectors deliver cutting-edge solutions. These circular connectors feature a high pin count and high-voltage configuration, which elevate functionality, accuracy and durability. Their adaptable design allows for cross-platform compatibility, and helps provide a seamless user experience.
TheraVolt Medical Connectors are customizable to meet specific device requirements, which help address diverse application needs and facilitate robust data transmission for interconnected medical devices.
MARKETS AND APPLICATIONS
Diagnostic equipment
Electrophysiology systems or equipment
Endoscopes
General medical equipment
Ultrasound equipment
Empower Precision with TheraVolt Medical Connectors
With superior electrical performance, TheraVolt Medical Connectors offer:
- Sterilization Compatible: Designed to withstand multiple autoclave cycles, TheraVolt Medical Connectors medical connectors are crafted from rugged materials to minimize field failures, helping to provide reliable and long-lasting performance in demanding healthcare environments.
- Design Flexibility and Customization Options: TheraVolt Medical Connectors enable design flexibility, providing tailored solutions to meet diverse application demands. Customizable insulators allow for tailored pin count and electrical requirements, making these connectors adaptable for both older and newer equipment.
- High Pin Count and Voltage Clearance: TheraVolt Medical Connectors minimize signal loss and interference, helping to ensure precise device operation. Their high pin count and high-voltage clearance support multifunctional designs, more functions and the ability to perform complex tasks that generate an increase in the amount of data collected.
TheraVolt Medical Connector Product Specifications
Physical
- 130 Pins
- 68: low voltage
- 62: high voltage
- Operating Temperatures: -35 to +85°C
- Sterilization: Materials selected for autoclave
Electrical
- Contact Resistance: < 8 milliohms
- Low-voltage Contacts: 500V DC
- High-voltage Contacts: 2,200V DC
- Current: 1.0A/pin
Mechanical
- Insertion Force (max.): 53N
- Durability: 1,000 cycles
